HDPE
video
HDPE

HDPE Hauv ob sab phlu rau cov pas dej

Smooth thiab textured geomembrane.
Thickness: 8mil ~ 120mil, 0.2mm ~ 3.0mm
Tear resistance thiab puncture resistance
Anti-seepage thiab corrosion kuj
Siv nyob rau hauv landfills, pas dej ntses, mining, thiab lwm yam.
Customized raws li xav tau

Xa kev nug

Khoom Taw qhia

HDPE geomembrane pond liner 1


HDPE geomembrane hauv ob sab phlu

Geomembrane yog ib qho tsis tshua muaj permeability hluavtaws membrane hauv ob sab phlu lossis thaiv siv nrog cov khoom siv geotechnical los tswj kev tsiv teb tsaws ntawm cov kua dej (lossis gases) hauv cov neeg ua haujlwm, cov qauv, lossis cov tshuab. Kev tsim cov geomembrane pib nrog kev tsim cov khoom siv raw, suav nrog cov khoom siv polymer thiab ntau yam khoom ntxiv xws li antioxidants, plasticizers, fillers, carbon dub thiab lubricants (raws li kev pab cuam).

Cov ntaub ntawv raw (piv txwv li" formulations") yog tom qab ntawd ua tiav rau hauv cov ntawv ntawm ntau qhov dav thiab thicknesses los ntawm extrusion, Calendering thiab / lossis txheej. Geomembrane dominates kev muag khoom ntawm Geosynthetics. HDPE geomembrane hauv ob sab phlu yog thawj qhov kev xaiv rau hauv ob sab phlu engineering.

HDPE hauv ob sab phlu yog resistant rau ntau cov kuab tshuaj sib txawv thiab yog cov feem ntau siv geomembrane hauv ob sab phlu hauv ntiaj teb. Nws cov tshuaj tiv thaiv zoo heev thiab UV tsis kam ua rau nws cov khoom siv tau zoo heev.

MTTVS®HDPE geomembrane xeem txoj kev yog tsim los ntawm ASTM International|American Society for testing and Materials (ASTM) vim tias lawv muaj keeb kwm ntev hauv txoj haujlwm no.

Nyob rau tib lub sijhawm, nws kuj ua tau raws li cov qauv kev sim ntawm International Organization for Standardization (ISO). MTTVS®HDPE geomembrane tau lees paub thiab siv dav hauv engineering engineering thoob plaws ntiaj teb.

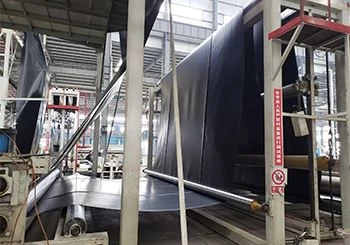

geomembrane lineProperties of MTTVS®HDPE du Geomembrane

● Tensile zog thiab elongation (index, dav dav, axisymmetric, thiab seams)

● Ua kua muag tsis kam

● Kev cuam tshuam tsis kam

● Txhaj tsis kam

● Interface shear zog

● Anchorage zog

● Kev ntxhov siab tawg (s tas li load thiab ib qho taw tes).


MTTVS®Daim ntawv thov HDPE liner

Geomembranes tau siv nyob rau hauv cov nram qab no ib puag ncig, geotechnical, hydraulic, tsheb thauj mus los, thiab lwm yam kev siv kev loj hlob:

● Ua li cov ntaub ntawv rau cov dej haus

● Raws li cov ntaub ntawv rau cov dej cia (xws li, kev nyab xeeb kaw ntawm cov chaw nuclear)

● Raws li cov ntaub ntawv rau cov kua dej pov tseg (xws li dej phwj sludge)

● Liners rau cov kua hluav taws xob lossis cov dej khib nyiab pov tseg

● Raws li cov ntaub ntawv rau cov khoom ntim hauv av hauv qab

● Raws li liners rau hnub ci pas dej

● Raws li cov ntaub ntawv rau cov tshuaj brine

● Raws li liners rau kev ua liaj ua teb kev lag luam

● Raws li liners rau kev lag luam aquiculture, xws li ntses / cw pas dej

● Raws li liners rau golf chav dej dej thiab xuab zeb bunkers

● Raws li liners rau txhua hom hniav thiab architectural pas dej

● Raws li liners rau cov kav dej xa khoom

● Raws li liners rau ntau yam pov tseg cov kwj dej

● Raws li cov ntaub ntawv rau cov thawj, theem nrab, thiab/los yog tertiary cov khib nyiab pov tseg thiab cov khib nyiab pov tseg

● Raws li cov ntaub ntawv rau heap leach pads

● Raws li npog (caps) rau cov khib nyiab khib nyiab

● Raws li npog rau aerobic thiab anaerobic manure digesters hauv kev lag luam ua liaj ua teb

● Raws li npog rau fais fab nroj tsuag thee tshauv

● Raws li cov ntaub ntawv rau cov phab ntsa ntsug: ib leeg lossis ob npaug nrog kev kuaj pom

● Raws li kev txiav tawm nyob rau hauv zoned ntiaj teb dams rau seepage tswj

● Raws li cov ntaub ntawv rau cov dej ntws thaum muaj xwm ceev

● Raws li waterproofing liners nyob rau hauv tunnels thiab pipelines

● Raws li cov dej tsis sib haum ntawm lub ntiaj teb thiab cov dams rockfill

● Raws li cov dej tsis sib haum rau cov menyuam compacted pob zeb ua dams

● Raws li cov dej tsis sib haum rau cov masonry thiab pob zeb ua dams

● Nyob rau hauv cofferdams rau seepage tswj

● Raws li floating reservoirs rau seepage tswj

● Raws li floating reservoir npog tiv thaiv kev ua qias tuaj

● Kom ntim thiab thauj cov kua hauv cov tsheb thauj khoom

● Kom ntim thiab thauj cov dej haus thiab lwm yam dej hauv dej hiav txwv

● Raws li kev thaiv cov ntxhiab tsw los ntawm qhov chaw pov tseg

● Raws li kev thaiv cov vapors (radon, hydrocarbons, thiab lwm yam) hauv qab cov tsev

● Txhawm rau tswj cov av loj

● Txhawm rau tswj cov av uas tsis muaj dej khov

● Txhawm rau tiv thaiv qhov chaw hauv lub dab dej los ntawm cov dej ntws

● Txhawm rau tiv thaiv kev nkag mus ntawm cov dej hauv thaj chaw rhiab heev

● Tsim cov raj thaiv phab ntsa ua dams

● Txhawm rau fim cov qauv kev txhawb nqa raws li cov cofferdams ib ntus

● Txhawm rau ua dej ntws mus rau hauv txoj kev nyiam

● Hauv qab txoj kev loj kom tsis txhob muaj kuab paug los ntawm deicing ntsev

● Hauv qab thiab nyob ib sab ntawm txoj kev loj kom ntes tau cov kua dej txaus ntshai

● Raws li cov txheej txheem ntim rau cov nqi ntxiv ib ntus

● Los pab tsim kom muaj qhov sib xws ntawm subsurface compressibility thiab kev poob qis

● Hauv qab asphalt overlays ua ib txheej waterproofing

● Kom muaj cov dej poob hauv cov tank uas twb muaj lawm saum av

● Raws li cov ntaub ntawv hloov tau yooj yim uas cov khoom tsis tuaj yeem tso cai.


Kev tiv thaiv ib puag ncig Smooth HDPE Geomembrane Specifications

Cov khoom

KEV TIV THAIV

FREQUENCY

UNIT ENGLISH (METRIC)

MINIMIUM AVERAGE ROLL VALUE Askiv (METRIC)

MTTVS 30mil HD

MTTVS 40mil HD

MTTVS 60mil HD

MTTVS 80mil HD

MTTVS 100mil HD

MTTVS 120mil HD

Thickness Tsawg tus neeg nyeem ntawv

ASTM D 5199 (Tshooj 5199)

txhua yob

mil(mm)

30(0.750) 27(0.675)

40(1.00) 36(0.90)

60(1.50) 54(1.35)

80(2.00) 72(1.80)

100(2.50) 90(2.25)

120(3.0) 110(2.75)

Qhov ntom

ASTM D 1505, 1505

200,000 lb (90,000 kg)

g/cm3

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties (Txhua Txoj Cai)

ASTM D 6693, Hom IV









Lub zog thaum so

Dumbell, 2 ipm

20,000 lb (9000 kg)

lb/in-dav (N/mm)

114(20)

152(27)

228(40)

304(53)

380(67)

456(80)

Lub zog ntawm yield


lb/in-dav (N/mm)

63(11)

84(15)

126(22)

168(29)

210(37)

251(44)

Elongation ntawm Break

GL 2.0 nyob rau hauv (50mm)

%

700

700

700

700

700

700

Elongation ntawm Yield

GL1.3 nyob rau hauv (33mm)

%

12

12

12

12

12

12

Tear Resistance

ASTM D 1004 1

45,000 lb (20,000 kg)

lb(N)

21(93)

28(125)

42(187)

56(249)

70(311)

84(374)

Puncture Resistance

ASTM D 4833 (Tshooj 1)

45,000 lb (20,000 kg)

lb(N)

54(240)

72(320)

108(480)

144(640)

180(800)

215(960)

Cov ntsiab lus carbon dub

ASTM D 1603 * 4218 Cov Lus Qhia

20,000 lb (9000 kg)

% (ntaus)

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

Carbon Dub Dispersion

ASTM D 5596 (Tshooj 5596)

45,000 lb (20,000 kg)

Rau 10 qhov kev xav sib txawv: 9 hauv Qeb 1 lossis 2 thiab 1 hauv Qeb 3

Notched tas li Tensile Load

ASTM D 5397, Cov ntawv ntxiv

200,000 lb (90,000 kg)

hr

300

300

300

300

300

300

Standard Oxidative Induction Sijhawm

ASTM D 3895,200 ℃; O2,1 awm

200,000 lb (90,000 kg)

feeb

& gt; 100

& gt; 100

& gt; 100

& gt; 100

& gt; 100

& gt; 100

Kev kub siab Oxidative Induction Sijhawm

ASTM D 5885 Cov khoom lag luam

200,000 lb (90,000 kg)

feeb

& gt; 400

& gt; 400

& gt; 400

& gt; 400

& gt; 400

& gt; 400

Cub Kev laus ntawm 85 ℃ khaws cia tom qab 90 hnub

ASTM D 5721 1

rau txhua formulation

%

55%

55%

55%

55%

55%

55%

Standard Oxidative Induction Sijhawm

ASTM D 3895 (Tshooj 3895)

rau txhua formulation

%

80%

80%

80%

80%

80%

80%

Kev kub siab Oxidative Induction Sijhawm

ASTM D 5885 Cov khoom lag luam

rau txhua formulation

%

80%

80%

80%

80%

80%

80%

TYPICAL ROLL DIMENSIONS


Roll Length



ft (m)

1,120(341)

870(265)

560(171)

430(131)

340(104)

230(70)

Yob Dav



ft (m)

22.5(6.86)

22.5(6.86)

22.5(6.86)

22.5(6.86)

22.5(6.86)

22.5(6.86)

Yob cheeb tsam



22

25,200(2,341)

19,575(1,819)

12,600(1,171)

9,675(899)

7,650(711)

5175(473)

CEEB TOOM:

(1) Roll Lengths thiab widths muaj qhov kam rau ua ntawm ± 1%.

(2) HDPE Smooth muaj nyob rau hauv yob hnyav kwv yees li 4,000 lb (1,800 kg).

(3) Tag nrho cov geomembranes muaj qhov ruaj khov ntawm ± 2% thaum kuaj raws li ASTM D 1204 thiab LTB ntawm<-77˚c thaum="" kuaj="" raws="" li="" astm="" d="">


1


Hais txog MTTVS® Hoobkas

MTTVS® Lub tuam txhab Geosynthetics tshwj xeeb hauv kev tshawb fawb, kev tsim kho, kev tsim khoom, kev txhawb nqa thiab kev siv geosynthetics, thiab yog lub ntiaj teb' tus thawj coj ntawm geosynthetics. Founded hauv 2014 thiab nyob rau hauv Shandong, Suav teb, nws muaj ISO9001, ISO14001 thiab ISO45001 thoob ntiaj teb kev tswj hwm kev tswj xyuas ntawv pov thawj. Nws muaj zog muaj zog. Nws muaj ntau tshaj 10 thoob ntiaj teb cov cuab yeej siv qib siab ntau lawm kab thiab cov kws tshaj lij engineering thiab pab pawg ua haujlwm loj. Nws tau ua tiav kev koom ua ke thiab tsim cov lag luam tseem ceeb. Cov neeg siv khoom tsim tus nqi siab tshaj plaws. Los ntawm kev ua cov khoom siv hluavtaws. Peb tsim, tsim khoom thiab muab cov tshiab thiab txhim khu kev qha geosynthetics los txhim kho kev ua tau zoo ntawm peb cov neeg siv khoom' cov khoom. Peb lub lag luam tseem ceeb yog tsim thiab xa tawm cov kev pabcuam ib-nres thiab cov khoom xws li geotextiles, geomembranes, geogrids, geocells, peb-dimensional composite drainage nets, ecological bag, drainage boards, 3D geomats, etc.


Peb cov khoom raug xa tawm mus rau 56 lub teb chaws thoob ntiaj teb. Peb cov neeg siv khoom tseem ceeb yog los ntawm Tebchaws Meskas, Lub Tebchaws Yelemees, Pakistan, Is Nrias teb, Kenya, Nyab Laj, Mirru, Ukraine, Uganda, Bolivia, Ecuador, Australia, Fabkis, Sweden, United Kingdom, Hong Kong, Hungary, New Zealand, Poland, Mexico, Brazil, Bangladesh, Thaib, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, UAE, Saudi Arabia, Qatar, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia, thiab lwm yam.

Niaj hnub no, peb tsis tsuas yog tsim cov khoom zoo tshaj plaws geosynthetics, tab sis kuj muab kev tsim qauv thiab kev pab cuam installation. OEM, ODM, kev tsim kho thiab kev tsim khoom tuaj yeem muab tau. MTTVS®Geosynthetics yog lub chaw tsim khoom lag luam muaj zog hauv kev tsim khoom, nce qib thiab muag kev lag luam. Los ntawm kev muab cov kev daws teeb meem thiab cov khoom lag luam hauv ntau daim ntawv thov thiab kev lag luam thoob ntiaj teb, MTTVS®Geosynthetics tseem tsim cov qauv kev lag luam thiab dhau los ua tus thawj coj tseem ceeb tshaj plaws.

Zoo siab txais tos cov neeg koom tes hauv kev lag luam thoob ntiaj teb los tham txog kev koom tes!

MTTVS® geosynthetics koj tuaj yeem ntseeg tau



Cim npe nrov: HDPE hauv ob sab phlu rau lub pas dej, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, yuav, pheej yig, luv nqi, dawb qauv
