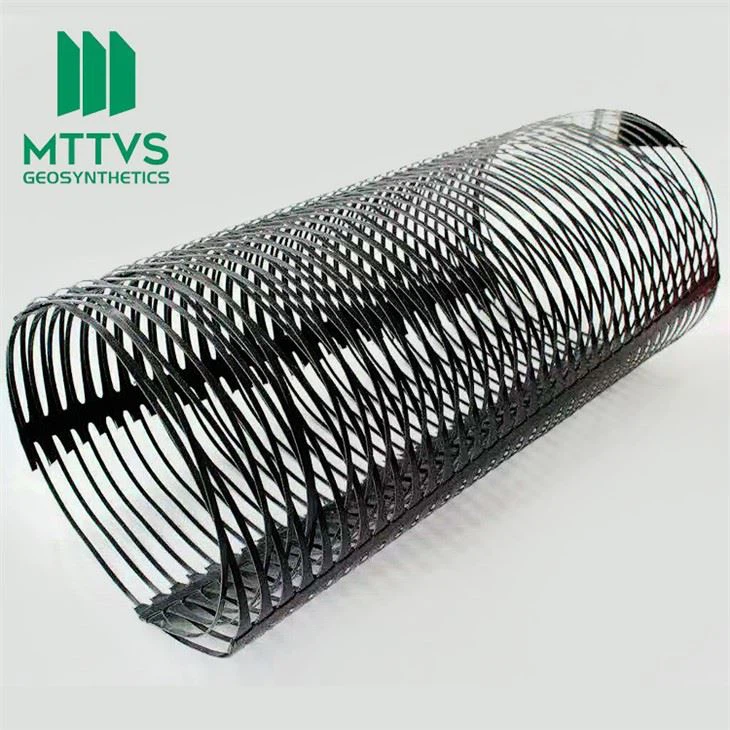

Yas Extruded Av Reinforcement Uniaxial Geogrid
Ua los ntawm cov khoom siv polymer
Phab ntsa tuav
Qhov kawg Tensile Strength:
Los ntawm 50kN txog 300kN
Khoom Taw qhia
Geogrid Fabric rau Retaining Phab Ntsa, Txoj Kev Slope thiab Roadbase Support
Geogrid yog cov khoom siv geosynthetic siv los txhawb cov phab ntsa, qhov chaw siab tshaj, txoj kev hauv paus thiab cov hauv paus av. Lub luag haujlwm tseem ceeb ntawm geogrid yog kev txhawb nqa. Cov av sib cais nyob rau hauv qhov nro, thiab geogrid muaj zog nro kom hloov lub zog mus rau thaj tsam av loj.
Geogrids feem ntau yog ua los ntawm cov khoom siv polymer xws li polyester, polyvinyl cawv, polyethylene lossis polypropylene. Lawv tuaj yeem woven los yog knitted los ntawm yarns, tshav kub welded los ntawm strips ntawm cov khoom, los yog ua los ntawm xuas nrig ntaus cov qauv ntawm lub qhov nyob rau hauv ib daim ntawv ntawm cov khoom thiab ces stretching lawv mus rau hauv ib daim phiaj.
Qhov tseem ceeb ntawm geogrid yog qhov qhib (hu ua" qhov") ntawm cov kab uas nyob ib sab ntawm longitudinal thiab transverse tav loj txaus kom cov av nkag los ntawm ib sab ntawm geogrid mus rau lwm qhov. . Cov tav ntawm geogrids feem ntau nyuaj heev. Nyob rau hauv cov ntaub ntawv ntawm anchoring, lub osmotic siab ntawm cov av nyob rau hauv lub qhov yog tiv thaiv transverse tav, thiab transverse tav hloov lub load mus rau lub longitudinal tav los ntawm kev sib txuas cov ntsiab lus (nodes).
Geogrids muaj xws li dual-axis geogrid, ib leeg-axis geogrid, multi-axis geogrid, fiberglass geogrid (asphalt geogrid), polyester geogrid (polyester geogrid), steel-yas geogrid.
Cov neeg tsim qauv xaiv cov khoom tsim geogrid raws li qhov yuav tsum tau ua. MTTVS®tuaj yeem muab tag nrho cov ntaub ntawv geogrid uas ua tau raws li koj xav tau.
FUNCTION
● Khaws phab ntsa
● Av stabilization
● Kev ruaj khov ntawm txoj kab nqes
● Kev tswj kev yaig
● geogrid ntaub rau txoj kev
● Txoj kev ruaj khov
● Kev tsim kho txoj kev
Geogrid Fabric Retaining Phab ntsa specification
Khoom | Txoj Kev Xeem | Chav tsev | UG 60 PE | UG 80 PE | UG 120 PE | UG 160 PE | UG 180 PE | UG 200 PE |
MD | MD | MD | MD | MD | MD | |||
Polymer | - | - | HDPE | |||||
Minimun Carbon Dub | ASTM D 4218 (Tshooj 1) | % | 2 | |||||
Tensile Strength @ 2% Lim | ASTM D 6637 Kev txiav txim siab | lbs/ft (kN/m) | 1,090(16) | 1,570(23) | 2,400(35) | 3,220(47) | 3,560(52) | 3,970(58) |
Tensile Strength @ 5% Lim | ASTM D 6637 Kev txiav txim siab | lbs/ft (kN/m) | 2,130(31) | 3,010(44) | 4,450(65) | 6,370(93) | 7,130(104) | 7,950(116) |
Qhov kawg Tensile Strength | ASTM D 6637 Kev txiav txim siab | lbs/ft (kN/m) | 4,110(60) | 5,480(80) | 8,220(120) | 10,970(160) | 12,340(180) | 13,700(200) |
Strain@Ultimate Strength | ASTM D 6637 Kev txiav txim siab | % | 11.5 | |||||
Kev sib tshuam Efficiency | TSI GG2-87 | % | 93 | |||||
Flexural tawv | ASTM D 1388 (Tshooj 1388) | mg cm | 530,000 | 1,100,000 | 6,000,000 | 8,500,000 | 9,400,000 | 9,600,000 |
Durability | ||||||||
UV Resistance | ASTM D 4355 (Tshooj 1) | % | 98 | |||||
Oxidation Resistance | TS EN ISO 13438 Kev Tswj Xyuas Kev Nyab Xeeb | % | 100 | |||||
Brittleness | WashDOT T926 | - | Hla | |||||
Kev txo qis | ||||||||
Txo qhov cuam tshuam ntawm kev puas tsuaj (RFid) | ASTM D 5818 Cov Lus Qhia Tshwj Xeeb | - | 1.00 | |||||
Kev txo qisQhov xwm txheejntawmNtsigntawm120 xyooTsimLub neej (RFcr) | ASTM D 5262 Cov khoom lag luam | - | 2.23 | |||||
Qhov ntev | ||||||||
Yob Dav | - | ft (m) | 3.28(1) lossis 6.56(2) | |||||
Roll Length | Yam tsawg kawg nkaus | ft (m) | 328(100) | 164(50) | 164(50) | 164(50) | 164(50) | 164(50) |
Nco tseg:
MD: qhia txog Machine Direction
Kev cai qhov kawg Tensile Strength xaj los ntawm 50kN txog 300kN tuaj yeem haum.
