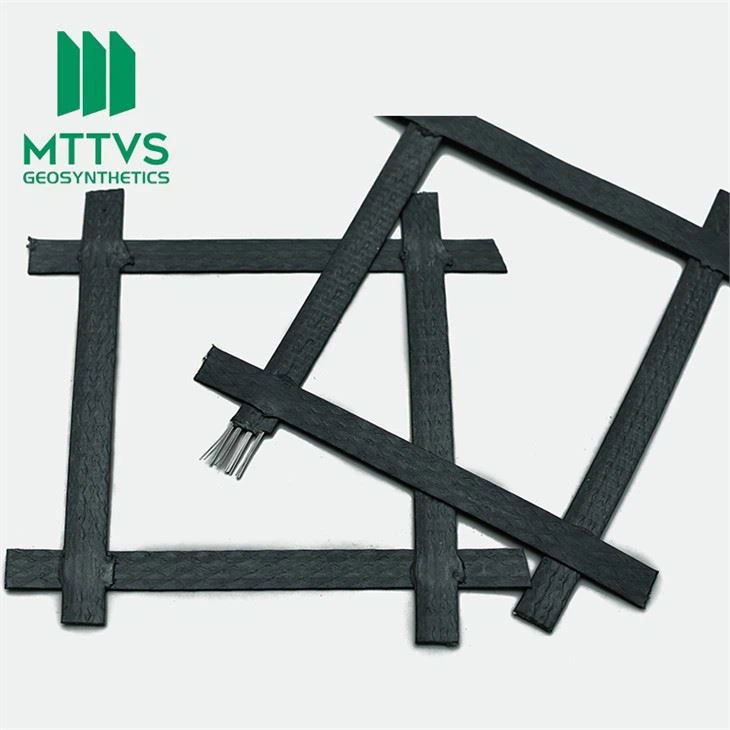

Hlau Yas Geogrid rau Retaining Wall
High-strength steel hlau thiab polyethylene (PE)
Tsawg heev creep
Node tuaj yeem ncav cuag 300N ~ 500N
Siab zog thiab qis elongation
High coefficient ntawm kev sib txhuam
Tau customized
Khoom Taw qhia
Hlau-yas geogrid nrog Convex node
Geogrid yog cov khoom siv geosynthetic loj. Cov hlau-yas geogrid yog ua los ntawm high-strength steel hlau thiab polyethylene (PE) thiab ntxiv nrog rau lwm yam additives los ntawm ib tug tshiab txheej txheem. Qhov saum npoo muaj cov qauv ntxhib tas li. Qhov no ib txoj siv yog woven los yog sandwiched los ntawm ib tug tej yam deb longitudinally thiab transversely. Lub zog ntawm qhov kawg tev quab yuam ntawm cov hlau-yas geogrid pob qij txha yog txawv. Muaj peb txoj kev sib txuas: vuam, xauv thiab Convex node.Geogrid nrog convex node yog siv fused cam khwb cia rau txuas cov ntsug thiab kab rov tav tav los ua ib daim phiaj, uas muaj cov node muaj zog. Lub zog shear ntawm welded daim phiaj node ntau dua 1.5Mpa, lub thickness ntawm cov node yog ntau tshaj 5 hli, thiab txwv tev quab yuam ntawm lub convex node daim phiaj node yuav ncav cuag 300 ~ 500N.
Yog tias koj xav tau ntau dua kev txwv tshem tawm lub zog ntawm kev sib tshuam geogrid, thov hu rau peb cov engineers thiab peb yuav teb koj tam sim ntawd.
Feature
● Lub zog muaj zog
● Muaj peev xwm bearing
● Anti-corrosion
● Anti-aging
● High coefficient ntawm kev sib txhuam
● Txawm lub qhov
● Tsis tshua muaj elongation
● Tsis tshua muaj creep
● Kev tsim kho yooj yim
● Ntev ntev
● Anti-UV
● High limit detached zog ntawm kev sib tshuam
Daim ntawv thov
● Kev txhim kho kev tsheb ciav hlau
● Kev txhim kho kev loj
● Kev txhim kho lub pas dej da dej
● Retaining phab ntsa thiab pavement crack resistance project
● Dej hiav txwv qhov project
● Kev txhawb nqa kev txhawb nqa
● Txhim kho txoj hauv kev kom tsis txhob tawg.
High-strength biaxial steel-yas geogrid nrog Convex node specification:
Cov khoom | Chav tsev | ZPO 30-30 | ZPO 40-40 | TSW 50-50 | TSW 60-60 | ZPO 70-70 | TSW 80-80 | GSZ 100-100 | TSW 150-150 | |
Qhov kawg Tensile Strength | MD | lbs/ft(kN/m) ≥ | 172(30) | 229(40) | 286(50) | 343(60) | 400(70) | 457(80) | 572(100) | 857(150) |
TD | lbs/ft(kN/m) ≥ | 172(30) | 229(40) | 286(50) | 343(60) | 400(70) | 457(80) | 572(100) | 857(150) | |
Tensile Strength @ 1% Lim | lbs/ft(kN/m) ≥ | 132(23) | 183(32) | 229(40) | 274(48) | 320(56) | 360(63) | 463(81) | 714(125) | |
Elongation thaum so | %≤ | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Carbon Dub | % | 2~3 | ||||||||
Antifreeze Index | ℉(℃) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | |
Limit Detached Strength ntawm kev sib tshuam | N | 300 ~ 500 (cov neeg siv khoom' s thov) | ||||||||
Vertical mesh clearance loj (D) | mm | 60≤D≤180 | ||||||||
Ib leeg strip dav | mm | ≥14 | ||||||||
Ib leeg strip thickness | mm | ≥2.0 | ||||||||
Yob Dav | ft (m) | 19.52(5.95) | ||||||||
Roll Length | ft (m) | 164.04(50) | ||||||||
Daim ntawv 2-2
Cov khoom | Chav tsev | TZD 50-30 | ZPO 60-30 | ZWM 80-30 | ZWM 80-50 | TSI 100-50 | ZWM 120-50 | TSI 150-50 | TSI 180-50 | |
Qhov kawg Tensile Strength | MD | lbs/ft(kN/m) ≥ | 286(50) | 343(60) | 457(80) | 457(80) | 571(100) | 686(120) | 857(150) | 1029(180) |
TD | lbs/ft(kN/m) ≥ | 172(30) | 172(30) | 172(30) | 286(50) | 286(50) | 286(50) | 286(50) | 286(50) | |
Tensile Strength @ 1% Lim | lbs/ft(kN/m) ≥ | 132(23) | 275(48) | 360(63) | 360(63) | 463(81) | 560(98) | 714(125) | 869(152) | |
Elongation thaum so | %≤ | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Carbon Dub | % | 2~3 | ||||||||
Antifreeze Index | ℉(℃) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | -95(-35) | |
Limit Detached Strength ntawm kev sib tshuam | N | 300 ~ 500 (cov neeg siv khoom' s thov) | ||||||||
Vertical mesh clearance loj (D) | mm | 60≤D≤180 | ||||||||
Ib leeg strip dav | mm | ≥14 | ||||||||
Ib leeg strip thickness | mm | ≥2.0 | ||||||||
Yob Dav | ft (m) | 19.52(5.95) | ||||||||
Roll Length | ft (m) | 164.04(50) | ||||||||
